Detección de temperatura del GPU con Fan Xpert 2+: Garantiza
que cada ventilador logre el mejor equilibrio entre refrigeración y acústica
TUF Protection: SafeSlot, ESD Guards, protección sobre
voltaje en DDR4, Digi+ VRM, y un panel traserio I/O de acero inoxidable para
mayor durabilidad
Componentes de grado militar TUF: TUF LANGuard, TUF Chokes,
Capacitores TUF, y TUF MOSFETs para una máxima durabilidad
Audio personalizado DTS® exclusivo: Ofrece señales de
posición para audífonos estéreo, lo que te ayuda a identificar a tus enemigos
en la acción
Aura Sync RGB: Sincroniza la iluminación LED con una amplia
gama de equipos/accesorios compatibles

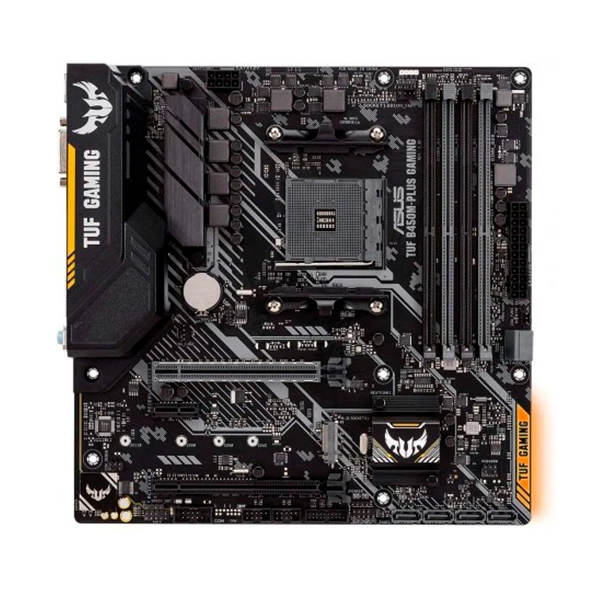

Especificaciones:
CPU
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™
Vega Graphics/Ryzen™ 1st Generation Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list
Chipset
AMD B450
Memoria
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega
Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4
3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors
Lists).
Gráficos
Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics
Processors
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160
@ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Soporte Multi GPU
Supports AMD CrossFireX™ Technology
Slots de Expansión
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
1 x PCIe 2.0 x1
Almacenamiento
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega
Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110
storage devices support (SATA & PCIE 3.0 x 4 mode)*1
2 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
AMD B450 chipset :
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN
Realtek® RTL8111H
TUF LANGuard
Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital
separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and
right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm,
natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity
of audio signals to ensure best quality.
Puertos USB
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega
Graphics/ Ryzen™ 1st Generation :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega
Graphics/ Ryzen™ 1st Generation :
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
AMD B450 chipset :
1 x USB 3.1 Gen 2 port(s) (1 at back panel, )
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Caracteristicas Especiales
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class
circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for
greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS
Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Sistema operativo
Windows® 10 64-bit

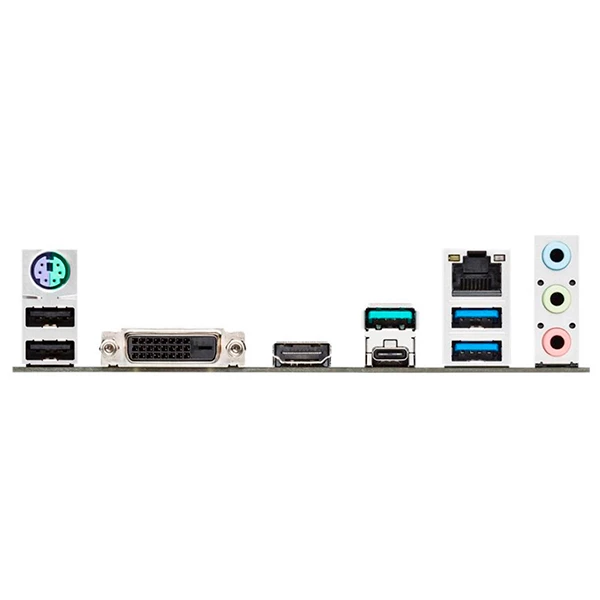

Puertos I/O Traseros
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 Type-A,
1 x USB 3.1 Gen 1 (blue) USB Type-CTM,
2 x USB 2.0
2 x USB 3.1 Gen 1 (blue)
3 x Audio jack(s)
Internal I/O
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s)
additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0
port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110
storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Accessorios
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1,
Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last
Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence
Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search
Capacidad de gestión
WOL by PME, PXE
Sistema Operativo
Windows® 10 64-bit
Factor de forma
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Nota
*1 The M.2 Socket shares bandwidth with the SATA_5/6 ports,
and therefore the SATA_5/6 ports cannot be used when an M.2 device is
installed.
*2 Use a chassis with HD audio module in the front panel to
support an 8-channel audio output.
